500-600 م / دقيقة سرعة.
هذه الآلة مناسبة للأقمشة غير المنسوجة PET OPP CPP PE ، فيلم PVC والمواد البصرية ، الورق والمواد المختلفة.
يتطلب استخدام PLC المستورد لتحقيق وظائف تحكم دقيقة ومستقرة فقط إدخال سمك المواد الخام وقطر النطاق العريض والسرعة.
Main technical parameters：
|
1. Material width |
1300mm |
|
2. Material diameter |
800mm |
|
3. Winding diameter |
600mm |
|
4 paper with inner hole |
3 # 6 # |
|
5 slitting speed |
10-500m/min |
|
6 MIN SPLIT |
25-1300MM |
|
7 Total power |
15 kw |
|
8 Mechanical dimensions |
2200X2800X1840 |
|
PLC |
Mitsubishi, Japan |
|
Servo Motor |
Fukuta Taiwan |
|
Touch screen |
Weinview Taiwan |
|
Edge correction device |
Pausource, Taiwan |
|
Cylinder |
Airtac Taiwan |
|
Bearing |
NSK Japan |
Material Characteristics:
1. Host part
The equipment host adopts steel plate material as the center for secondary processing and shaping treatment
2. The transmission spindle is machined from seamless steel pipes and has a surface hardening and dynamic balancing treatment
3. The material guide roller is completed with aluminum alloy guide roller and rubber roller
4.The transmission mode of the 4 main engines is synchronous belt synchronous wheel transmission
5. The main unit adopts a laser lamp to effectively improve work efficiency and time on paper tubes
2. Material discharge section
1. The feeding mechanism is a connected feeding rack
2. The material is automatically loaded using shaftless hydraulic pressure, which effectively saves labor and is convenient and simple to operate
3. Equipped with a set of adjustable deflection rod device that can be adjusted through a handwheel
4. Magnetic powder brake braking is used for unwinding
5. Edge correction adopts the Enrix brand to achieve material edge tracking (other brands can be chosen separately)

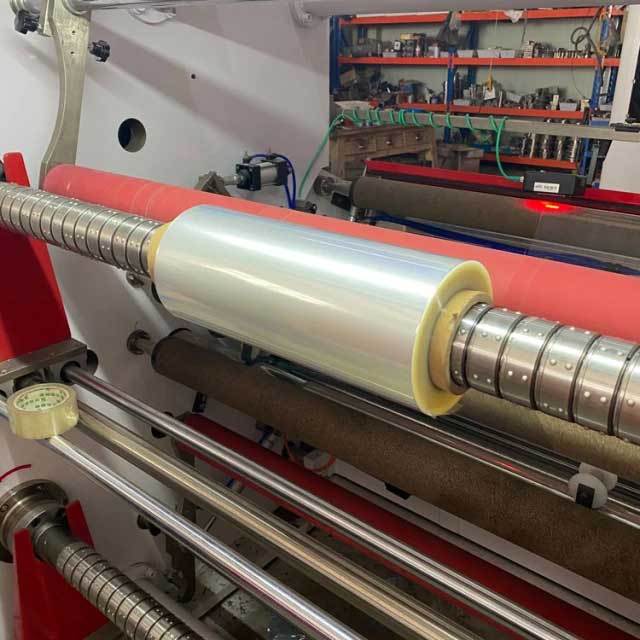

3. Material receiving section
1. The material receiving shaft is equipped with 2 3-inch pneumatic slip shaft shafts
2. The locking method is controlled by inflation method
3. The winding tension is controlled by an imported SMC electrician proportional valve
4. Cutting knives use circular knives to cut flat knives 10 round knives
5. Equipped with a set of waste blowing edge device
6. Equipped with finished subframe, saving time and effort, effectively improving work efficiency

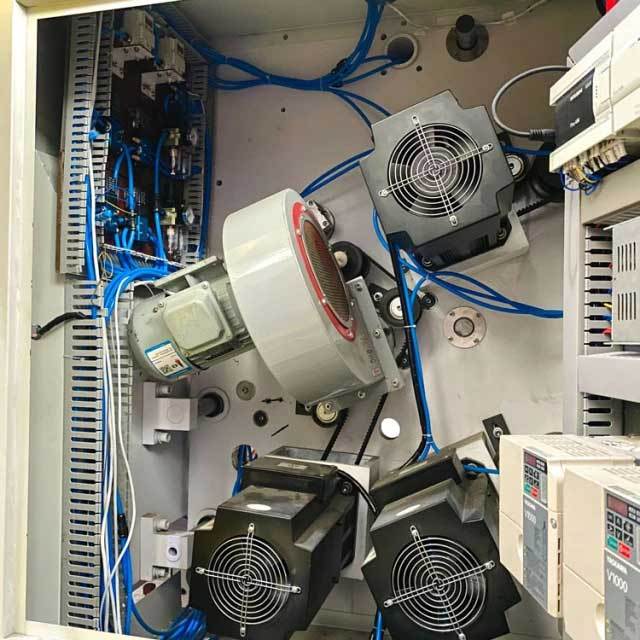

4. Electrical parts
1. The host adopts a frequency converter
2. Main machines, 1 Danma motor
3. Winding using 2 frequency converters
4. Danma motors for 4 hosts
5. LPC uses analog control to drive servo motors
Using imported PLC to achieve precise and stable control functions only requires input of raw material thickness, broadband diameter, and speed.
All subsequent tasks are automatically calculated by the computer.
Random Accessories：
1 set of Allen wrenches 5 oil gun
2 adjustable wrench 6 air gun
3 Slotted screwdriver 7 Air nozzle
4 Phillips screwdriver
